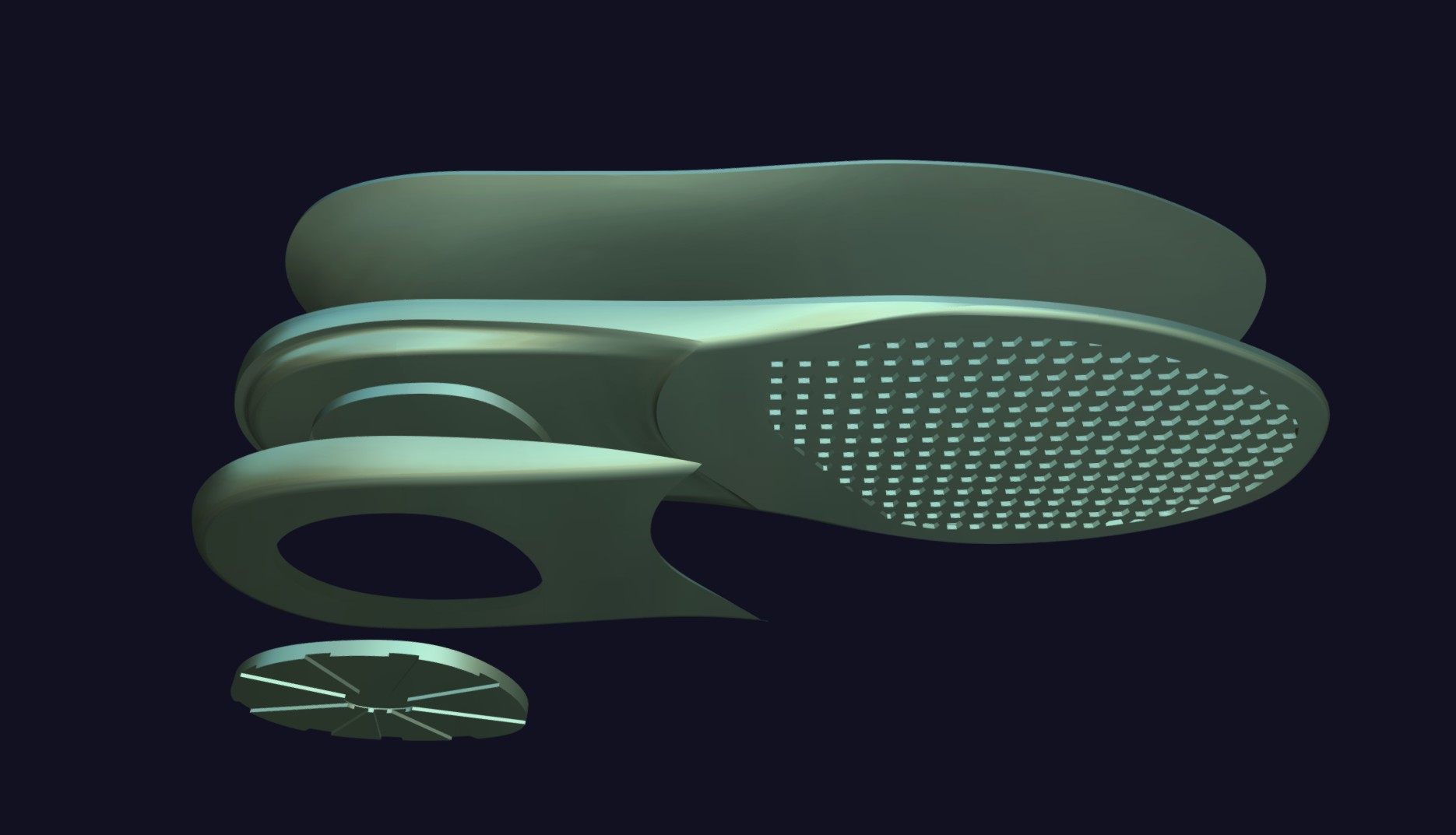

Professional multi-layer, multi-density orthopedic insole CAD model developed for high-volume footwear manufacturing, industrial PU injection molding, and precision CNC tooling applications. The design combines structural biomechanical support with strategically positioned cushioning zones for enhanced comfort, stability, and pressure redistribution.

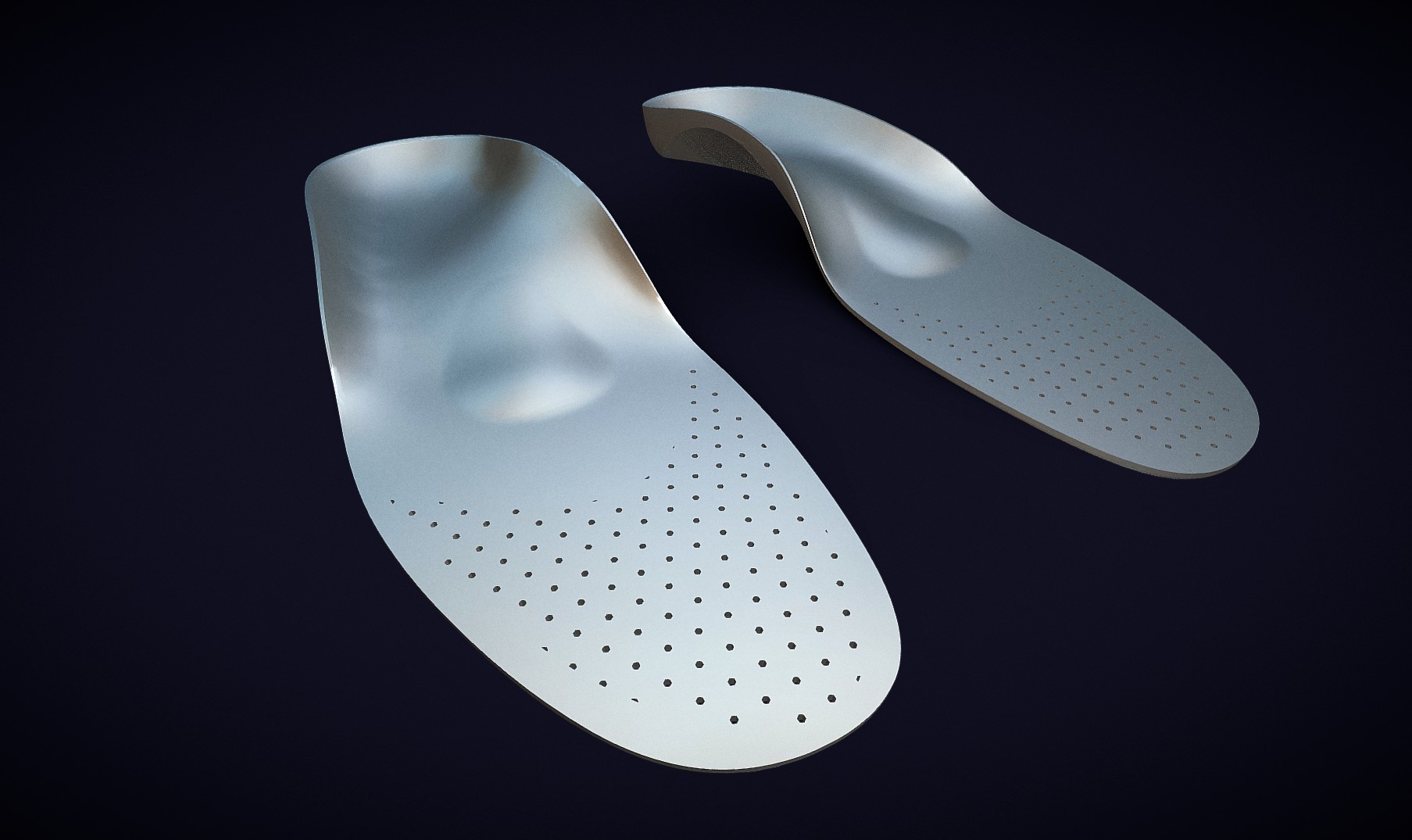

Professional full-length orthopedic insole developed using advanced CAD modeling and biomechanical correction principles. The design integrates medial arch skive correction, adjustable metatarsal support, and lightweight perforated geometry optimized for podiatry applications, custom orthotic manufacturing, and 3D printing workflows.

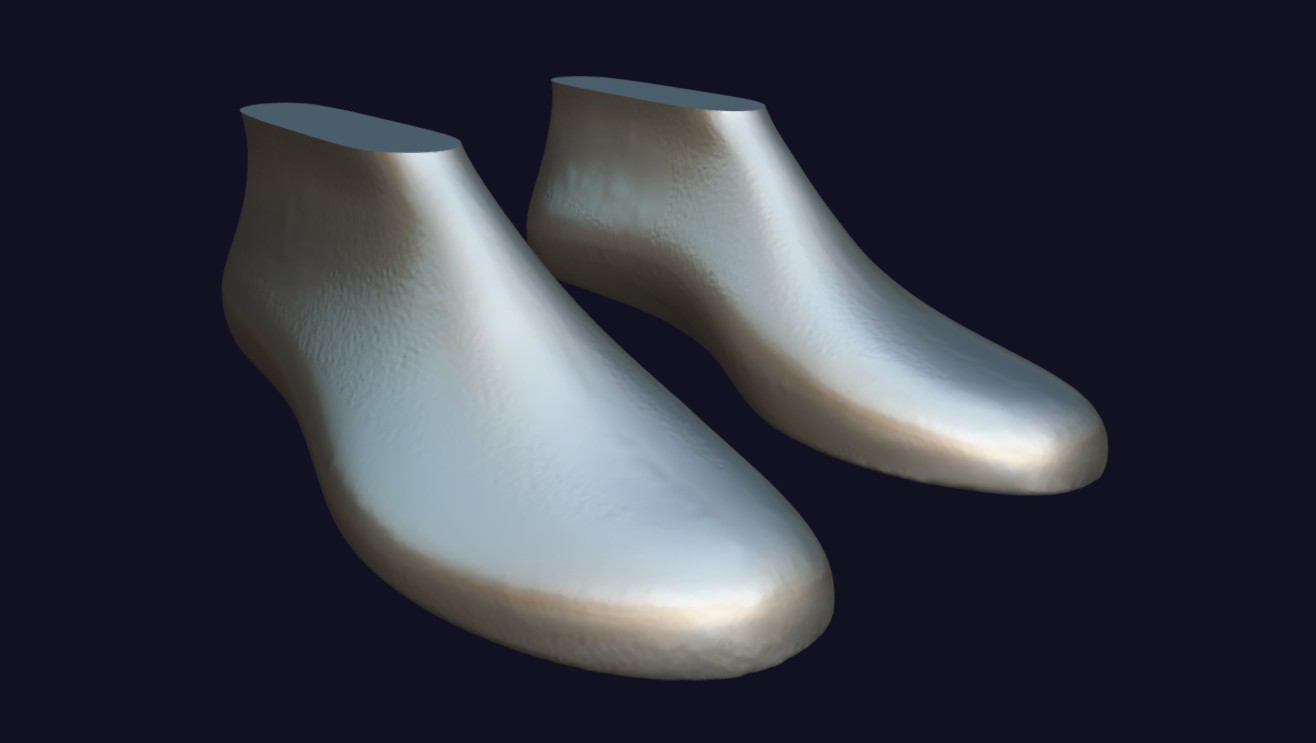

Professional high-resolution left-side anatomical orthopedic foot last designed for custom insole development, orthopedic footwear prototyping, gait analysis, and biomechanical CAD applications. The model features watertight and manifold geometry optimized for manufacturing, simulation, and medical CAD/CAM workflows.

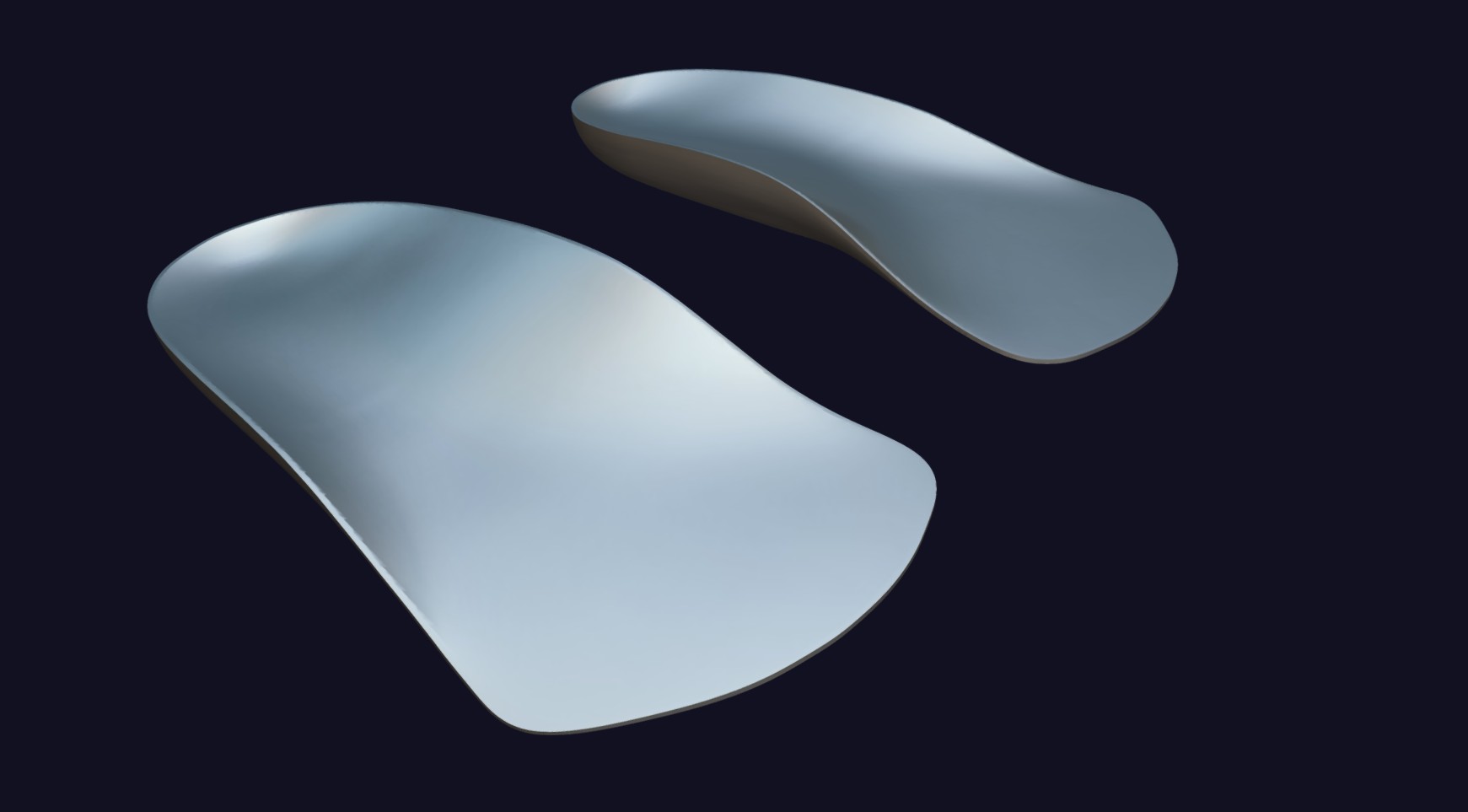

Professional custom 3/4 length orthotic insole developed for podiatry applications, custom orthosis fabrication, and medical footwear integration. The low-volume profile is specifically engineered for narrow or dress shoes while maintaining essential biomechanical support and rearfoot stability.

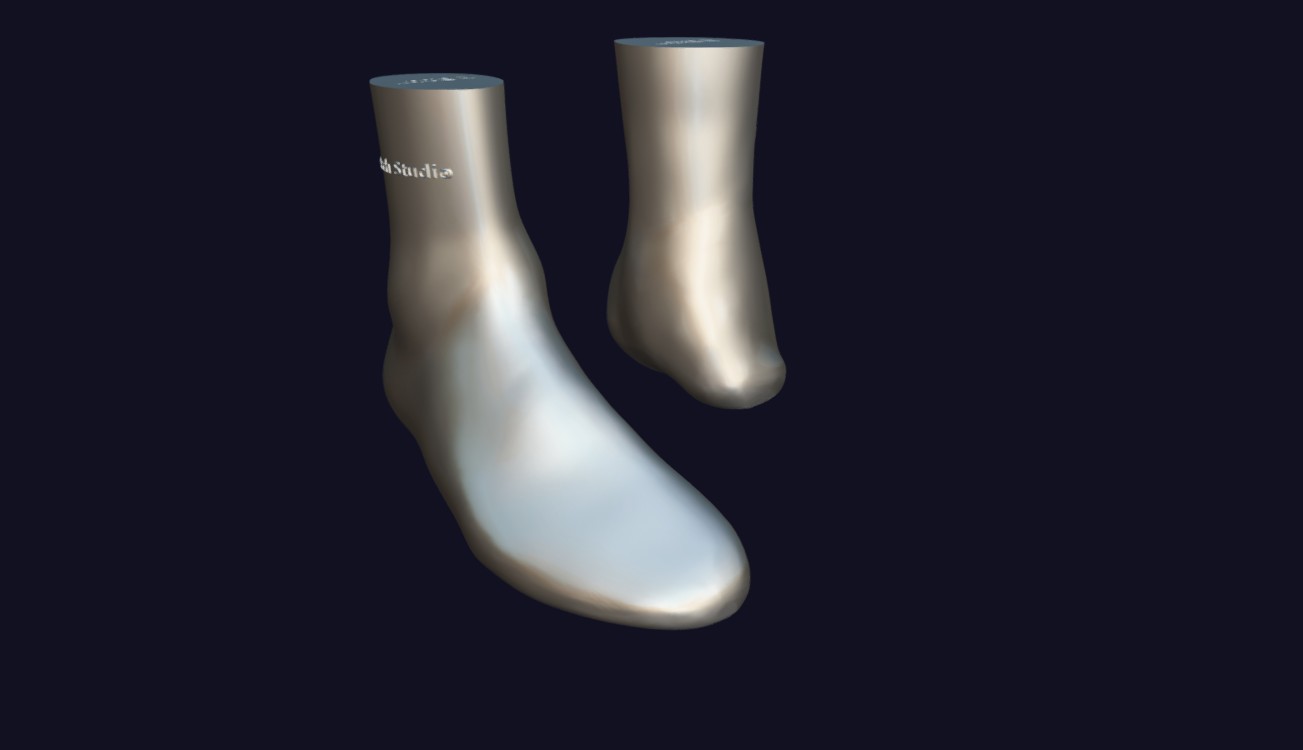

Professional custom high-volume orthopedic shoe last developed for partial foot amputation accommodation and advanced medical footwear manufacturing. The design provides additional internal depth and modified forefoot geometry to support prosthetic fillers, orthotic extensions, and custom rehabilitation footwear applications.

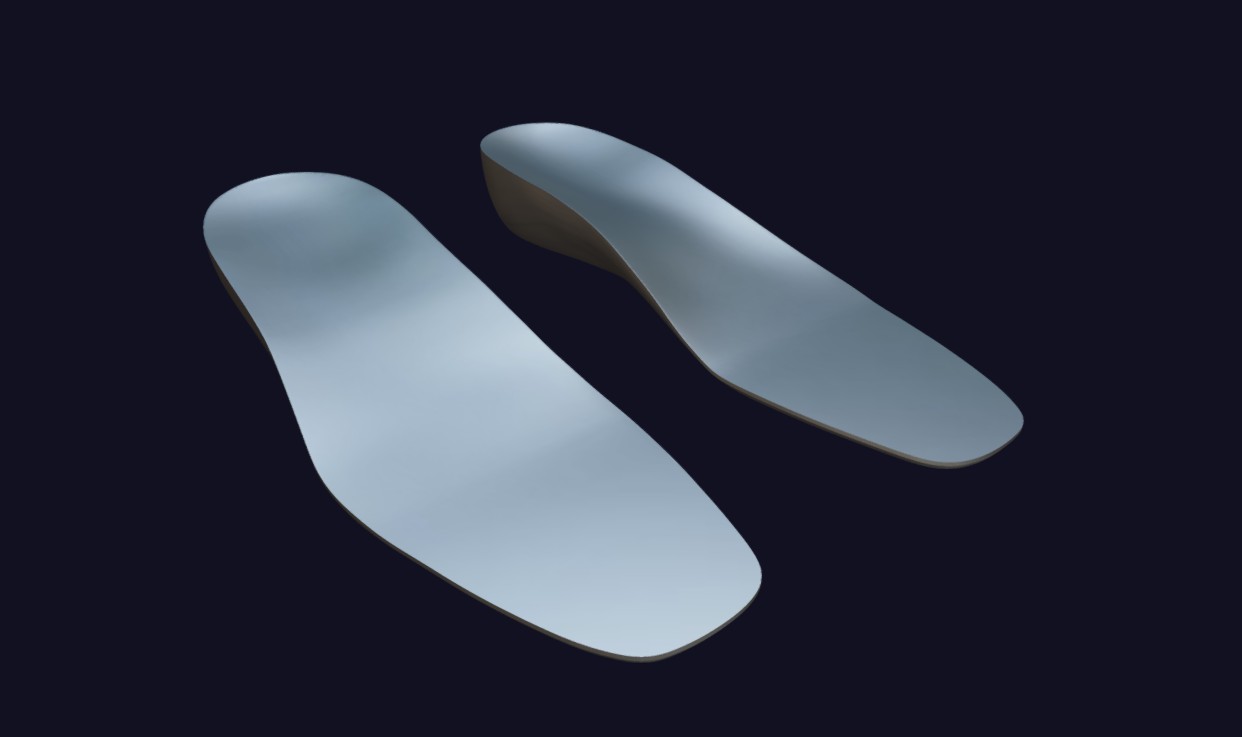

Professional custom orthotic insole featuring an integrated heel lift, developed for podiatry applications, biomechanical correction, and orthopedic footwear manufacturing. The design supports leg length discrepancy management while improving rearfoot stability and reducing Achilles tendon strain during gait.
