3D CAD Models Storefront
Browse premium, production-ready biomechanical CAD designs, custom lasts, and prefabricated insole files.

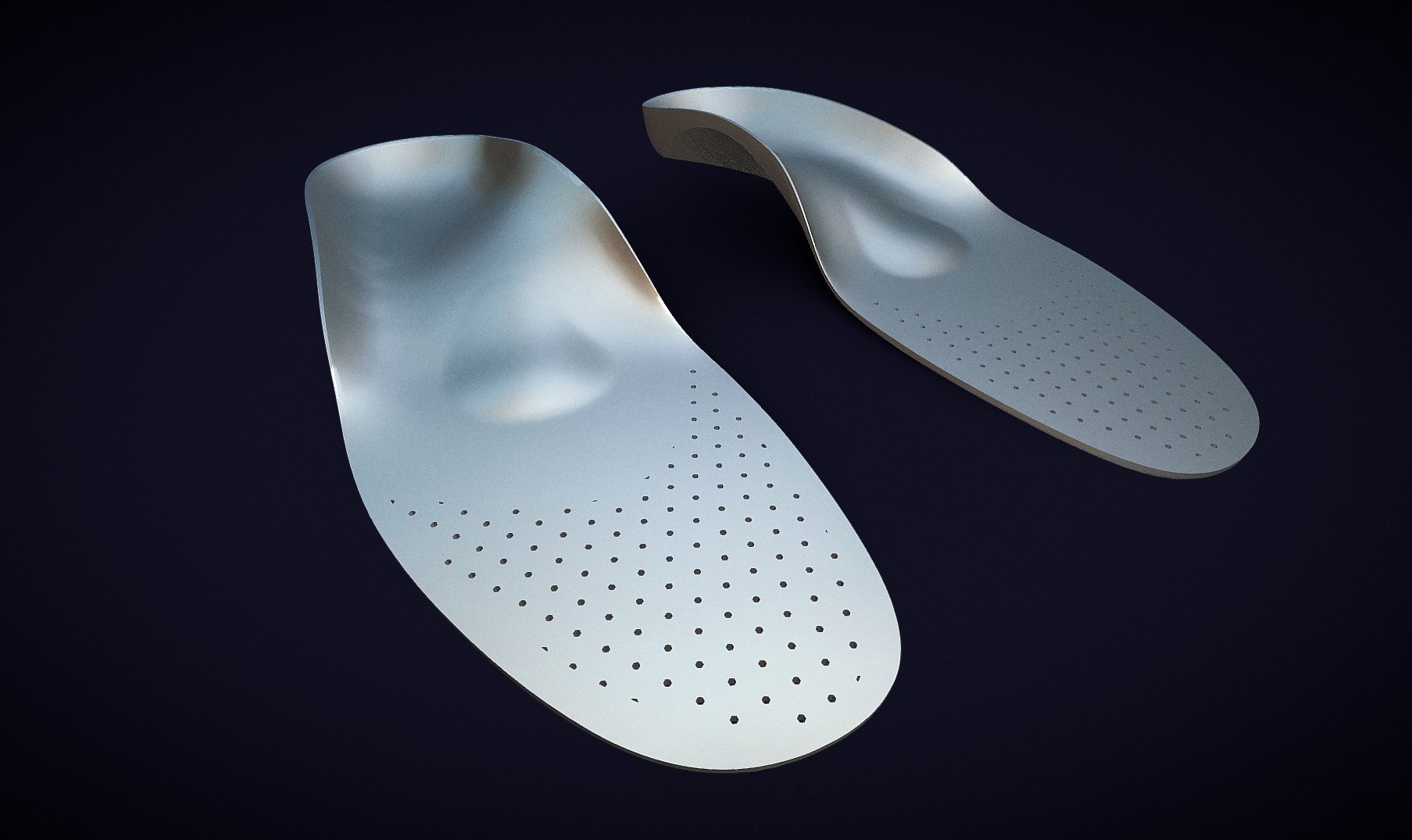

Full-Length Orthopedic Insole with Arch Skive & Metatarsal Pad
Improved medial arch control, enhanced forefoot pressure redistribution, lightweight ventilated structure, and manufacturing-ready CAD geometry fully compatible with CNC milling and additive manufacturing systems.

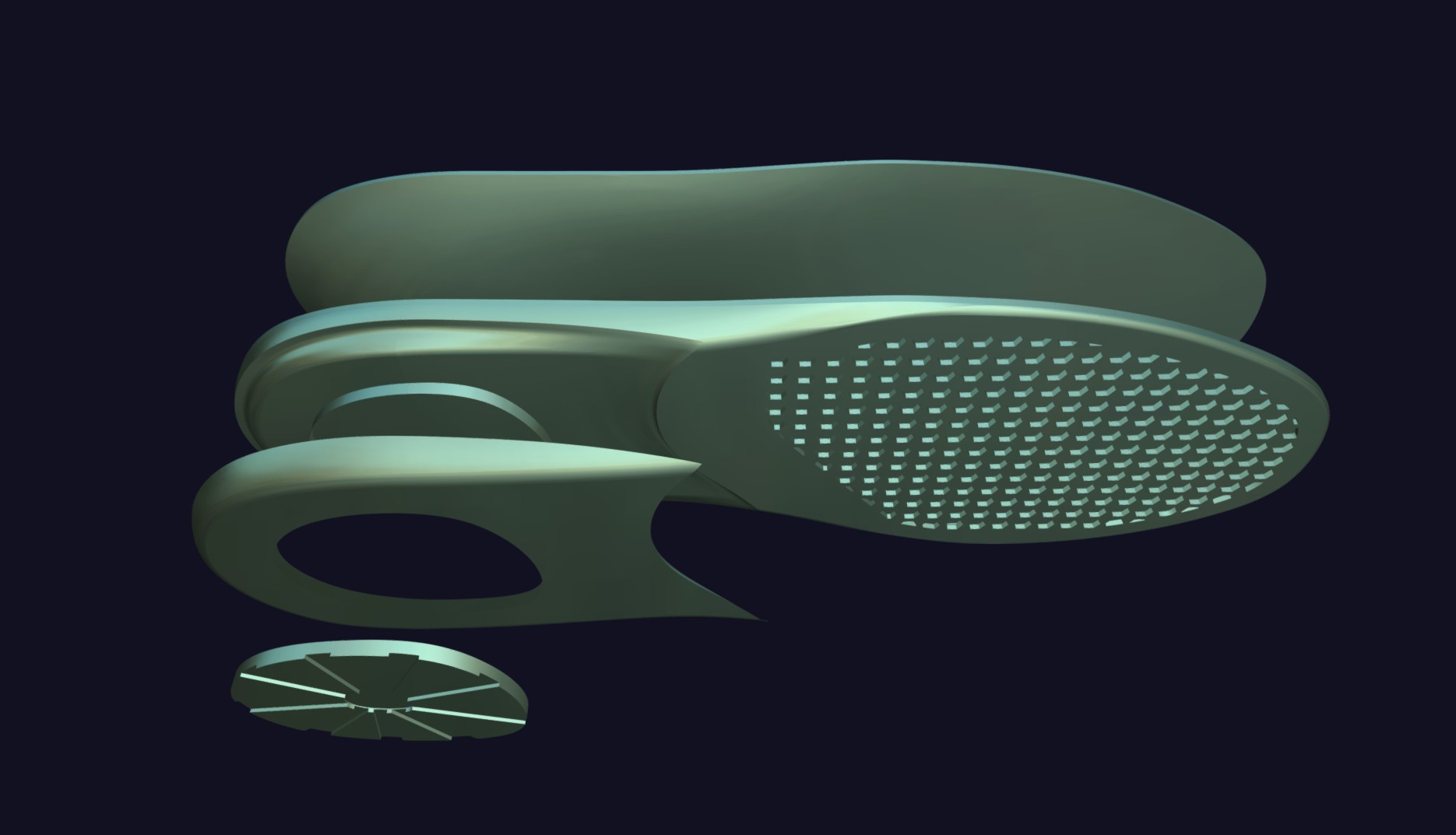

Multi-Layer PU Injection Insole
Multi-Layer Orthotic Insole Overview Professional multi-layer, multi-density orthotic insole CAD model designed by Biomech Studio for high-volume bulk production, industrial PU injection molding, and precision CNC tooling workflows. The design features a sophisticated multi-zoned architecture, balancing rigid structural support with targeted dynamic cushioning elements to maximize foot biomechanics. Key Manufacturing & Design Features: Multi-Density Design:* Separated material zones for a supportive base integrated with high-rebound cushioning. PU Injection & CNC Ready: Engineered with clean surfacing and draft considerations for mold development and CNC carving. Cushioning Elements: Integrated heel shock-absorption pad and a textured forefoot grid for pressure relief. Anatomical Cage: Contoured arch support and heel cup for calcaneal stability. * Technical Specs & Applications:** * Production-ready, watertight geometry (Rhino 3D) * Industrial PU molding & B2B footwear CAD
